Adding Fog Lights to an SV model

Mon Nov 28, 2011 6:32 pm

I am one of the few (there's like 6 of us, right?) SV owners out there and want to add fog lights (preferably LED). I have covers where the fog lights would be, and no switch on the dashboard.

As a car hobbyist, I am quite capable of running wires, adding relays, etc. but have never done anything like this on the Leaf.

Specifically, I am looking for help on identifying where to buy a proper dash switch and led fog lights/mounts. Also help on identifying how to properly wire them all together would be very appreciated as well.
Leaf SOLD 2/2015, now driving Mercedes B Class
Cayenne Red 2011 Leaf SV, no QC, purchased
As of 2/5/2015: [66,000 miles] [10 bars]
Tires replaced at 30,000 miles with Michelin MXV4's (much better handling, slight reduction in range)

kmp647
Posts: 1136
Joined: Tue Jul 27, 2010 4:00 pm
Delivery Date: 11 Nov 2011
Location: Northern Virginia

Re: Adding Fog Lights to an SV model

Tue Nov 29, 2011 5:21 am

Good news is if you use LED you may not need a relay at all

here is the set I may try on my SL to replace the poor stock fogs

http://www.shopatron.com/products/produ ... 5370/353.0

I found them on ebay for $125.00 shipped!
2012 SL Leaf
order 07/28/2011
took delivery 11/11/11
47,000 miles 10 bars 211 gids
Turned back into Nissan 12/31/14 @ 50,000 miles
BMW i3 rex 24 month lease
2017 BMW X540e phev
Tesla model 3 reservation

asinclair
Posts: 76
Joined: Tue Jan 18, 2011 1:00 pm
Delivery Date: 05 Feb 2011
Leaf Number: 000302
Location: Novato and San Francisco, California

Re: Adding Fog Lights to an SV model

Wed Nov 30, 2011 12:06 pm

$125 seems to be a steal for these...thanks for the lead on the correct size for the lights, etc. This kit may be a great solution for me. Thanks again.
Leaf SOLD 2/2015, now driving Mercedes B Class
Cayenne Red 2011 Leaf SV, no QC, purchased
As of 2/5/2015: [66,000 miles] [10 bars]
Tires replaced at 30,000 miles with Michelin MXV4's (much better handling, slight reduction in range)

kevin672
Posts: 88
Joined: Tue May 24, 2011 2:52 pm
Delivery Date: 24 May 2011
Leaf Number: 1589
Location: So Cal.

Re: Adding Fog Lights to an SV model

Wed Nov 30, 2011 5:21 pm

asinclair wrote:I am one of the few (there's like 6 of us, right?) SV owners out there and want to add fog lights (preferably LED). I have covers where the fog lights would be, and no switch on the dashboard.

As a car hobbyist, I am quite capable of running wires, adding relays, etc. but have never done anything like this on the Leaf.

Specifically, I am looking for help on identifying where to buy a proper dash switch and led fog lights/mounts. Also help on identifying how to properly wire them all together would be very appreciated as well.


On the SL the fog light switch is on the turn signal stick, just inside of the regular headlight switch. Do you have that on the SV? If so you might not need to install a switch in the dashboard.

kmp647
Posts: 1136
Joined: Tue Jul 27, 2010 4:00 pm
Delivery Date: 11 Nov 2011
Location: Northern Virginia

Re: Adding Fog Lights to an SV model

Thu Dec 01, 2011 4:26 am

Be careful , I ordered these but have not installed them yet!
they list 3.5" as the diameter and the stock bumper may need some slight modification to fit

I would add a switch to an empty switch bank left of the steering column.
2012 SL Leaf
order 07/28/2011
took delivery 11/11/11
47,000 miles 10 bars 211 gids
Turned back into Nissan 12/31/14 @ 50,000 miles
BMW i3 rex 24 month lease
2017 BMW X540e phev
Tesla model 3 reservation

kmp647
Posts: 1136
Joined: Tue Jul 27, 2010 4:00 pm
Delivery Date: 11 Nov 2011
Location: Northern Virginia

Re: Adding Fog Lights to an SV model

Fri Dec 02, 2011 3:45 pm

I can now report that these LP530 PIAA LED fog lights are a perfect fit for the leaf

If you have an SL you can remove your stock fogs and reuse the bracket to mount the new lights

I lit them up just to test and the pattern and color is very nice

I will post a pic once I have them installed permanently

If you have an SV it will be an ok install too , no rely required as they draw only 8 watts
2012 SL Leaf
order 07/28/2011
took delivery 11/11/11
47,000 miles 10 bars 211 gids
Turned back into Nissan 12/31/14 @ 50,000 miles
BMW i3 rex 24 month lease
2017 BMW X540e phev
Tesla model 3 reservation

asinclair
Posts: 76
Joined: Tue Jan 18, 2011 1:00 pm
Delivery Date: 05 Feb 2011
Leaf Number: 000302
Location: Novato and San Francisco, California

Re: Adding Fog Lights to an SV model

Sat Dec 03, 2011 1:08 pm

kmp647 wrote:I can now report that these LP530 PIAA LED fog lights are a perfect fit for the leaf

If you have an SL you can remove your stock fogs and reuse the bracket to mount the new lights

I lit them up just to test and the pattern and color is very nice

I will post a pic once I have them installed permanently

If you have an SV it will be an ok install too , no rely required as they draw only 8 watts


Excellent news! I am going to try and source a Nissan switch from the dealer to fit in the dashboard...may take me a few weeks but I will post what I find...
Leaf SOLD 2/2015, now driving Mercedes B Class
Cayenne Red 2011 Leaf SV, no QC, purchased
As of 2/5/2015: [66,000 miles] [10 bars]
Tires replaced at 30,000 miles with Michelin MXV4's (much better handling, slight reduction in range)

kmp647
Posts: 1136
Joined: Tue Jul 27, 2010 4:00 pm
Delivery Date: 11 Nov 2011
Location: Northern Virginia

Re: Adding Fog Lights to an SV model

Wed Jan 18, 2012 6:52 pm

I have the stock fogs if anyone would like them

No brackets

Lights and bulbs only

Led PIAA 5370 are very nice
2012 SL Leaf
order 07/28/2011
took delivery 11/11/11
47,000 miles 10 bars 211 gids
Turned back into Nissan 12/31/14 @ 50,000 miles
BMW i3 rex 24 month lease
2017 BMW X540e phev
Tesla model 3 reservation

User avatar
LTLFTcomposite
Posts: 4661
Joined: Fri Apr 23, 2010 6:06 pm
Delivery Date: 10 Dec 2011
Leaf Number: 5926
Location: Central FL

Re: Adding Fog Lights to an SV model

Sat Jan 28, 2012 8:22 am

Any updates on this? Those two "nipples" where the fog lights should be are the most annoying regret of getting an SV for me, at least in the absence of L3 charging stations.

I was wondering about just putting in some "decorative" fog lights, little blue-ish LED lights that come on with the low beam headlights to avoid the need for adding some kind of switch. We rarely get fog here, and it has never been clear to me that fog lights do squat anyway... seriously, when there is heavy fog how does anything help?
LTL
White 2012 SV delivered 10 Dec 2011 returned 25 Nov 2014 replaced with stopgap ICE Sentra
[35 months] [35K miles] [9 Bars]
2013 Volt replaced after 36 months/30k miles with ICE Rogue
2016 SV-adjacent May 2016 lost 4th bar March 2018

User avatar
ceejones
Posts: 15
Joined: Fri Apr 01, 2011 11:02 am
Delivery Date: 22 Aug 2011
Leaf Number: 006638
Location: Canton, GA

Re: Adding Fog Lights to an SV model

Sat Mar 17, 2012 11:36 am

The PIAA led Fog Lights make an attractive addition to the front of an SV, much better than the black plugs. I wired mine as Daytime Running Lights (per GEEK EVs post) because they take so little power. I aimed them carefully so as not to blind anyone. I think they add to my visibility (being seen by others).

The procedure is easy. I raised the car on one front corner with a floor jack and a little wooden adapter described in these pages. I removed Front Under Cover per EXT-21 in the shop manual (just 5 bolts and about 6 push pins, easy). The black plastic hole covers come loose with one more bolt each. The PIAA light fits right in and can peek out the front like a real SL.

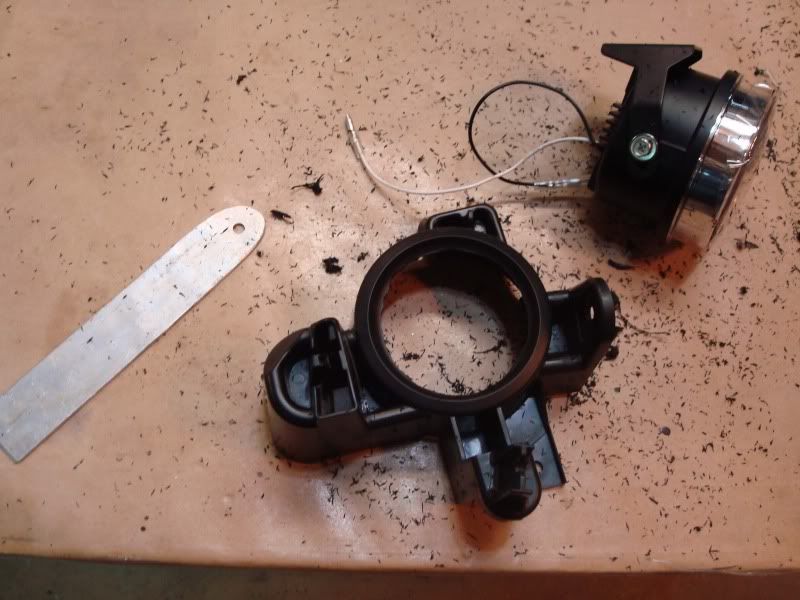

I cut the black plug out with a Dremel tool, leaving a little edge around for trim. Work in progress is shown. You could cut it all out, so the chrome on the light but no black shows out front.

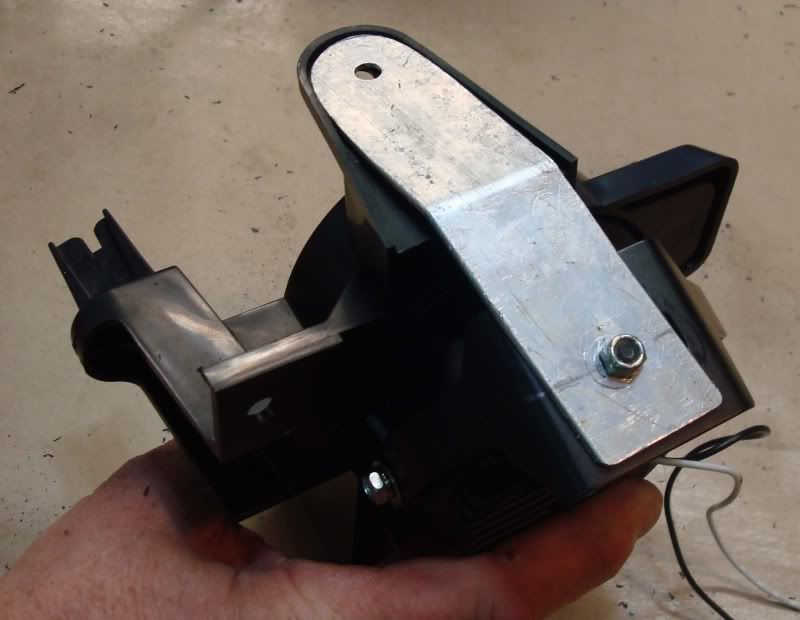

I formed a flat aluminum piece to fit inside the upper leg of the factory plastic piece and added a slight bend to reach to the PIAA bracket. The front hole in my bracket takes the original bolt that retains the black plastic piece to the car. I used one bolt to attach the PIAA bracket to mine. I didn't push the light all the way forward into the plastic piece so there was room for adjustment.
