Mx5racer
Posts: 176
Joined: Mon Oct 18, 2010 8:59 pm
Location: Yorba Linda, ca

Re: J1772 Holster

Sun Sep 25, 2011 10:26 am

Has anyone seen a click in holster available yet?
Silver SL
Yorba Linda, CA
5.9 Solar

jkirkebo
Posts: 400
Joined: Fri Jun 18, 2010 1:51 pm
Delivery Date: 30 Oct 2011
Leaf Number: 007344
Location: Fredrikstad, Norway

Re: J1772 Holster

Sun Sep 25, 2011 12:26 pm

Mx5racer wrote:Has anyone seen a click in holster available yet?


Yeah, I would be interested in one too. One that keeps snow and ice away from the handle would be extra nice as mine is mounted outside. The LCS-25 I have only loops the cord around with no holder and I do want to keep the handle a couple of meters away anyway.

User avatar
MrFish
Posts: 156
Joined: Sun Mar 20, 2011 1:10 pm
Delivery Date: 30 Mar 2011
Leaf Number: 0899
Location: Southern California, IE

Re: J1772 Holster

Sun Sep 25, 2011 12:49 pm

Maybe I'm a little redneck but this holster has worked great for me for the last 6 months.




Around $1.00 at Home Depot :D
Last edited by MrFish on Mon Sep 26, 2011 2:42 pm, edited 1 time in total.
"No American soldier has ever served on foreign soil to bring electricity to this country"

Miles= 41,000 in 26 months, 11 bars.............

User avatar
LEAFer
Posts: 2647
Joined: Mon May 24, 2010 10:10 am
Delivery Date: 19 Jan 2011
Leaf Number: 000215
Location: Sacramento Area

Re: J1772 Holster

Sun Sep 25, 2011 1:36 pm

A Coulomb CT-500 (residential version) is delivered with the holster as a separate part, to be installed by the electrician at the top-right corner of the EVSE. You might be able to order it as a replacement part ?

CT-500

Holster
2011 Silver SL+QC [Mfg: 11/2010] 36mo/15k LEASE
06Jun2013 Status [28.5 months][34,173 miles][11 bars]
Lost CapacityBar 6/6/13 @34,173 miles while in LEAF Battery Monitor: 83.41%, 71.4F (avg); cool overnight;

User avatar
philaphonic
Gold Member
Posts: 131
Joined: Mon Jun 14, 2010 7:58 am
Delivery Date: 16 Apr 2018
Leaf Number: 308567
Location: Houston, Texas
Contact: Website

Re: J1772 Holster

Sun Sep 25, 2011 3:37 pm

Glenn wrote:
ENIAC wrote:All the EVSEs just simply have a way to secure the connector, so that it doesn't fall to the floor.

I don't believe that's true. According to pictures on at least three manufacturer's websites (which may be outdated...) Clipper Creek, Leviton, and EVDriver's personal favorite, EVChargeAmerica all just loop the J-cord over a wall mounted saddle.

Glenn

The SPX doesn't have anything to hold the cable or connector end. I bought a garden hose holder and I sling the cable over that.

jkyu99
Posts: 81
Joined: Thu Nov 11, 2010 12:06 am
Delivery Date: 23 Jun 2011
Leaf Number: 5139
Location: Claremont, CA

Re: J1772 Holster

Sun Sep 25, 2011 5:28 pm

and if you want to protect the handle as well as the tip from water, snow, and ice?
Perhaps a small storage box with a small slot cut for just the cable to slide in as the lid is placed back.
Only $5 with a lid

User avatar
davewill
Posts: 4933
Joined: Thu Mar 17, 2011 6:04 pm
Location: San Diego, CA, US

Re: J1772 Holster

Mon Sep 26, 2011 11:15 am

A little more stylish for $90:

Bird Motif Copper Finish Hose Holder
2014 Rav4 EV, Blizzard Pearl White
2011 LEAF SL w/QC, Blue Ocean, returned at end of lease

Tugrik
Posts: 26
Joined: Mon Aug 29, 2011 10:13 am
Delivery Date: 30 Aug 2011
Leaf Number: 7651

Re: J1772 Holster

Mon Sep 26, 2011 2:18 pm

Can anybody point me to an engineering drawing of a J1772 plug?

If so I can whip up a socket-end with the 3D printer I have. Making a socket out of ABS plastic should be pretty trivial/cheap once I get the design down. It'd be a fun and practical use for our little plastiprinter toy. :)

ILETRIC
Posts: 740
Joined: Sun Dec 19, 2010 9:36 pm
Delivery Date: 04 Jun 2011
Location: Marin County

Re: J1772 Holster

Sun Oct 30, 2011 1:36 pm

If somone can tell me how to add images to this dumb thing I will post images of J1772 holser attached to my fence.
I clicked on Img and don't know how to proceed...

Thanks.
------------------------------------------------
1st bar lost at 38,700 miles/22 months
2nd bar lost at 45,750 miles/27 months

Traded-in on 10-19-2014 at 56,150 miles
-------------> for Kia Soul EV+ <-------------

ILETRIC
Posts: 740
Joined: Sun Dec 19, 2010 9:36 pm
Delivery Date: 04 Jun 2011
Location: Marin County

Re: J1772 Holster

Sun Oct 30, 2011 2:01 pm

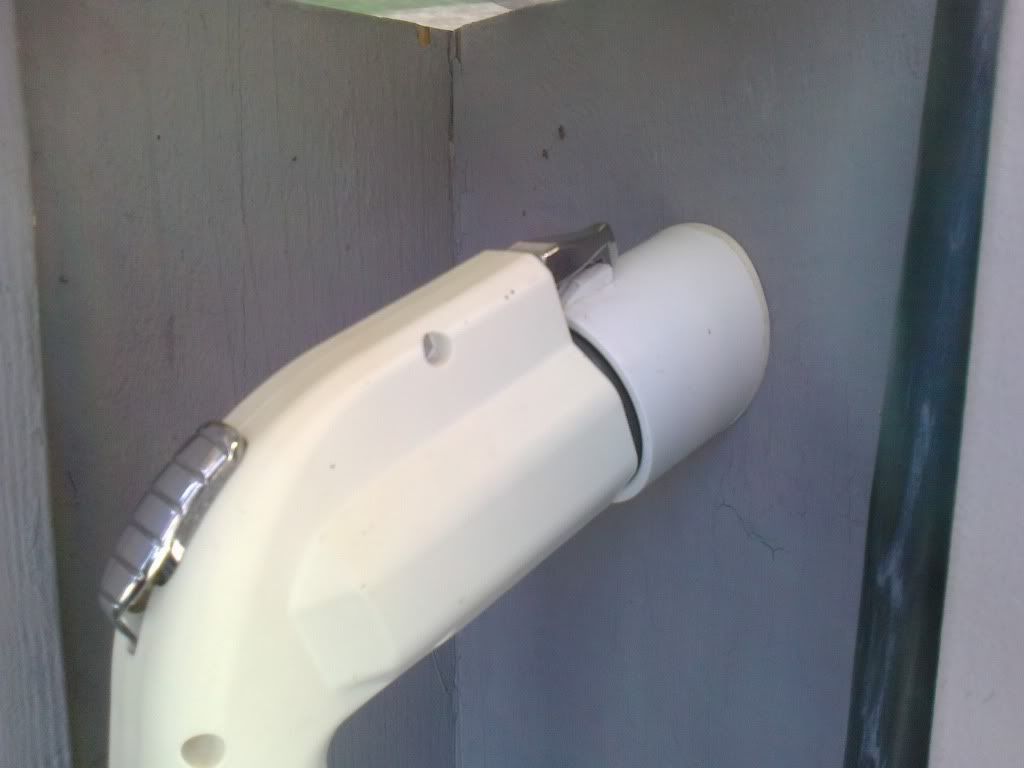

Okay, I did my homework. The images will be big, photobucket has no shrinking option there. Taken with my 5mp phone. Just save the pics on your desktop for further study. It's been in use since June so it's a little dirty. It's holding up real well.

I used 2" PVC connector. The backing is from some sort of 4-6" PVC lid used for god knows what. It was flat, all I had to do is knock off the center piece, hence the little missing material at the inside bottom. The hook is tricky, I chopped a piece of the same connector material and stuck it into the belt sander crack at an angle where the sandbelt disappears. You will mess up a couple of them until you find your groove. Also the placing of that widget was a pain to get it exact. The bonds a holding great, no problems.

[img]
http://i777.photobucket.com/albums/yy52 ... to0189.jpg[/img]

------------------------------------------------
1st bar lost at 38,700 miles/22 months
2nd bar lost at 45,750 miles/27 months

Traded-in on 10-19-2014 at 56,150 miles
-------------> for Kia Soul EV+ <-------------
